Shell Mold Casting

At Syncraft Precision, we produce custom industrial casting products that deliver precision and durability across industries such as mining, marine, and agriculture. With a focus on custom marine components for boats and mining equipment for heavy industries, our solutions are built to perform in the most demanding environments.

What is Shell Mold Casting?

Shell Mold casting is a precision investment casting process that uses a ceramic shell mold to create complex metal components with fine details and smooth surfaces. This method is ideal for producing high-quality parts with tight tolerances, making it a preferred choice in industries such as aerospace, automotive, and medical manufacturing.

At SynCraft Precision, we specialize in advanced shell mold casting techniques to deliver durable and dimensionally accurate components. Our expertise ensures superior mold integrity, allowing for efficient production and minimal material waste. This results in cost-effective solutions without compromising on quality.

With a commitment to innovation and precision, SynCraft Precision combines state-of-the-art technology with industry-leading craftsmanship. Our shell mold casting solutions provide enhanced strength, intricate designs, and a seamless finish, meeting the highest standards for performance and reliability.

Step 1. Mold Design

Iron molds exhibit superior thermal resistance and are ideal for creating durable shell molds.

Step 2. Shell Mold Production

Fully automated equipment enables efficient and consistent fabrication of shell molds.

Step 3. Mold Integration

Precision alignment of shell molds and cores ensures the creation of intricate casting geometries

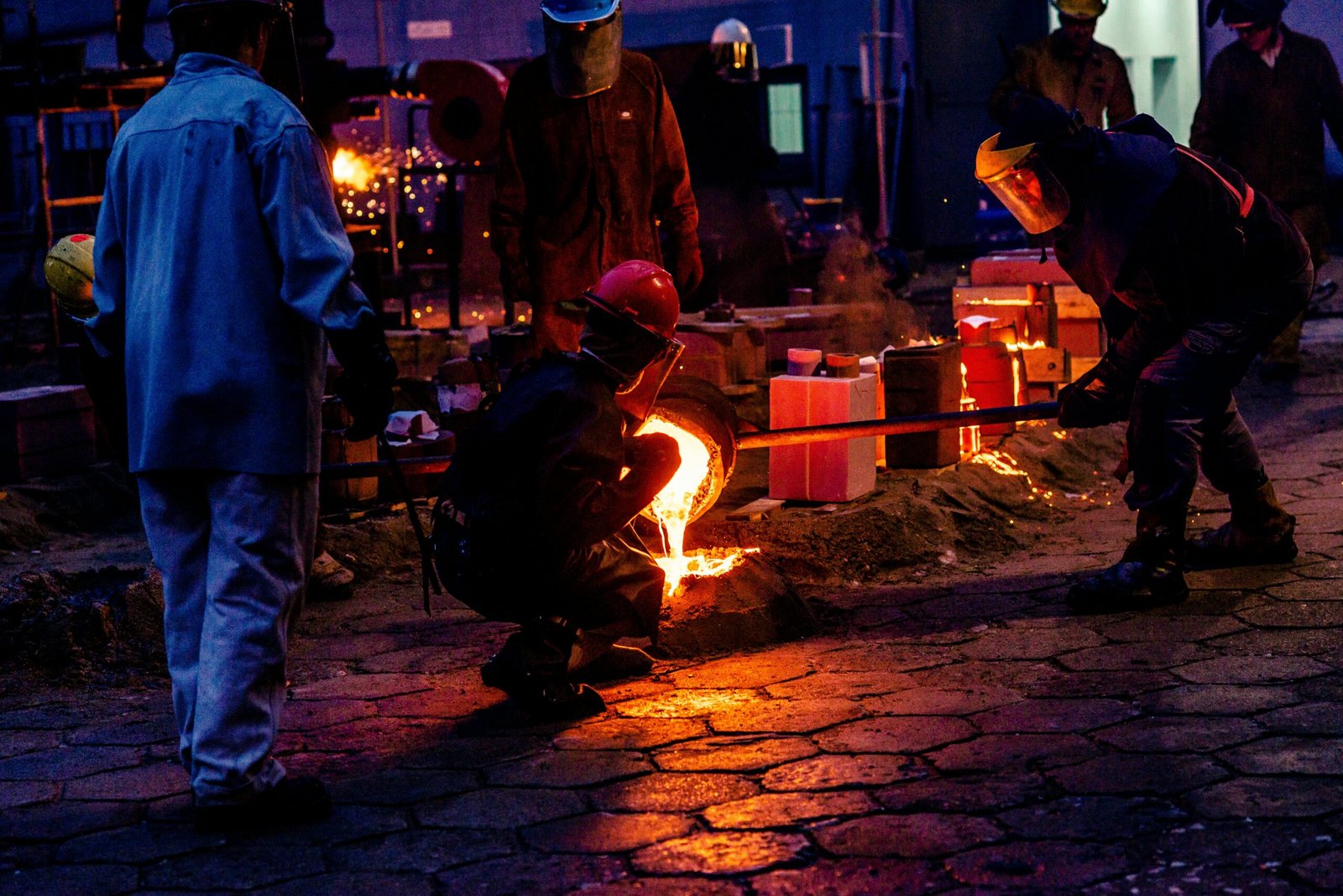

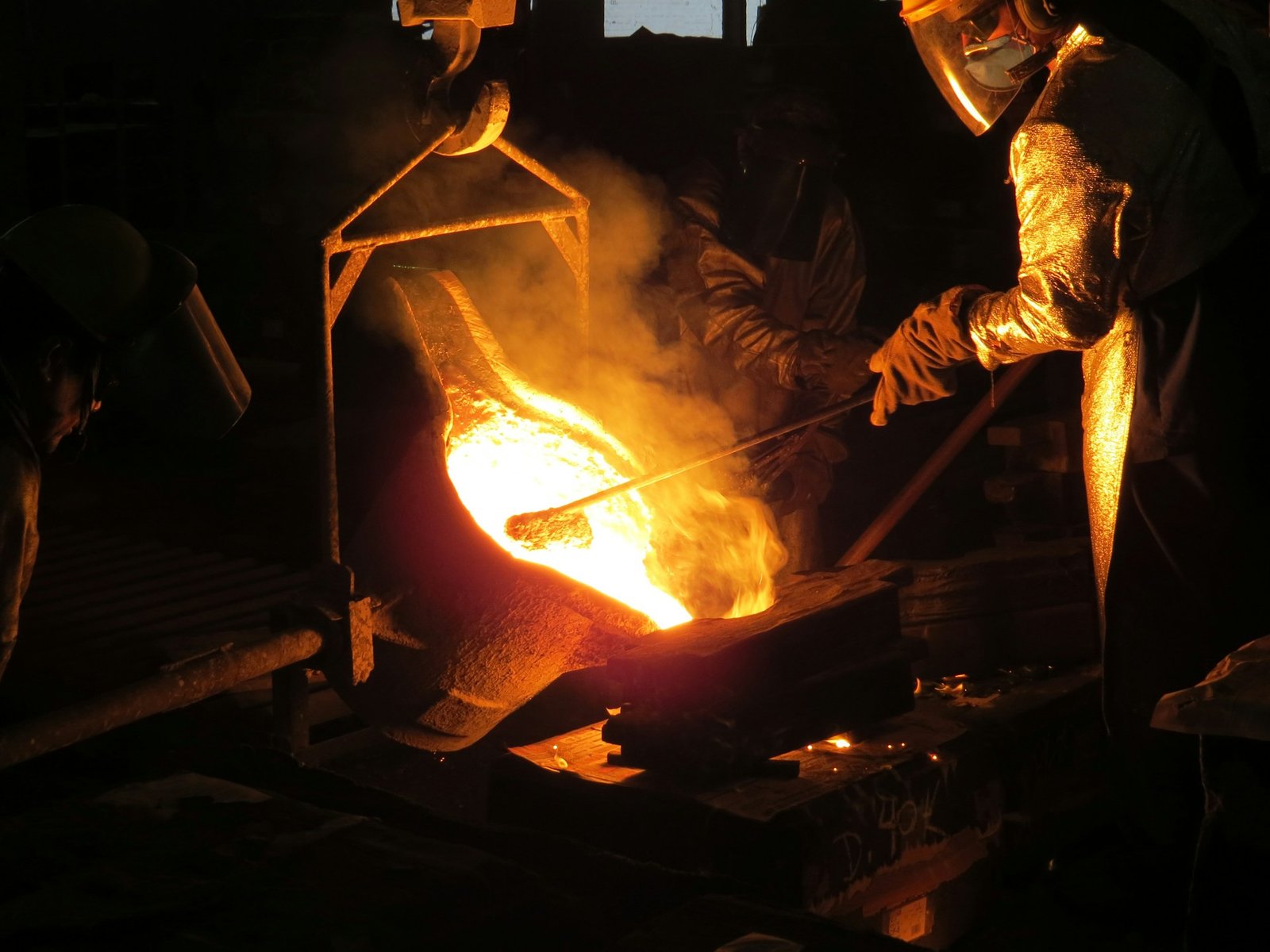

Step 4. Metal Fusion & Pouring

Optimized melting operations maintain high production efficiency and guarantee on-time delivery commitments

Step 5. Post-Casting Finishing

Detailed grinding and surface treatment enhance dimensional and aesthetic precision of castings

Step 6. Quality Assurance

Advanced inspection systems rigorously validate compliance with client specifications.

The Shell Mold Casting Process

Shell mold casting is a precision casting method that uses a thin, hard shell mold made of sand and resin. It is known for producing high-quality, dimensionally accurate parts with smooth surface finishes. Here’s an overview of the process:

The Shell Mold Casting Process

What WE oFFER

The Advantages of Shell MoldCasting

Shell mold casting, is a precision casting process that offers numerous benefits for manufacturing high-quality metal components. At SynCraft Precision, we leverage shell casting to deliver superior results tailored to industry needs.

What WE oFFER

The Advantages of Shell Mold Casting

Precision Shell Mold Casting

High-accuracy casting method for complex, thin-walled metal parts.

Smooth Surface Casting

Precision casting with a flawless, smooth finish for superior quality.

Elevated Production Efficiency

Boost productivity with streamlined processes and optimized resource utilization.

Complex Components Made Possible

Precision-crafted solutions for intricate components with unmatched complexity.

Consistent and Stable Quality

Reliable, unwavering quality that meets expectations every time.

Reduced Material Waste

Minimizes excess, saving resources and promoting sustainable production.

Key Features of Shell Casting:

High Precision: Produces parts with tight tolerances and smooth surfaces.
Efficiency: Suitable for medium to high-volume production.
Good Surface Finish: Reduces the need for extensive post-casting machining.
Applications: Shell casting is commonly used for producing small to medium-sized parts in industries such as automotive (e.g., engine components), aerospace, and machinery manufacturing.

Shell Mold Casting Materials

Material	Application	Product Feature
Carbon Steel	Automotive components, machinery parts	High strength, good wear resistance
Stainless Steel	Food processing equipment, medical devices	Corrosion resistance, hygienic surface
Gray Iron	Engine blocks, pump housings	Good vibration damping, machinability
Ductile Iron	Piping systems, gears	High strength, impact resistance
Aluminum Alloy	Aerospace, automotive components	Lightweight, corrosion resistance
Brass	Plumbing fittings, electrical components	Excellent conductivity, corrosion resistance
Bronze	Bearings, bushings	Good wear resistance, non-sparking
Nickel Alloy	Heat exchangers, turbine blades	High temperature resistance, corrosion resistance
Magnesium Alloy	Automotive, aerospace	Lightweight, high strength-to-weight ratio
Copper	Electrical components, plumbing	Excellent conductivity, antimicrobial properties

1. Stainless Steel

Known for its excellent corrosion resistance, high strength, and durability, stainless steel is ideal for applications requiring longevity and exposure to harsh environments.

2. Carbon Steel

A cost-effective option that offers high tensile strength and versatility, making it suitable for industrial, automotive, and structural components.

3. Aluminum Alloys

Lightweight yet strong, aluminum alloys are widely used in aerospace, automotive, and general engineering applications due to their excellent thermal and electrical conductivity.

4. Nickel-Based Alloys

These alloys provide exceptional heat and corrosion resistance, making them ideal for high-performance applications in aerospace, marine, and chemical industries.

Applicable Materials for Shell Mold Casting

At SynCraft Precision, we specialize in investment casting using high-quality materials to ensure durability, precision, and superior performance.

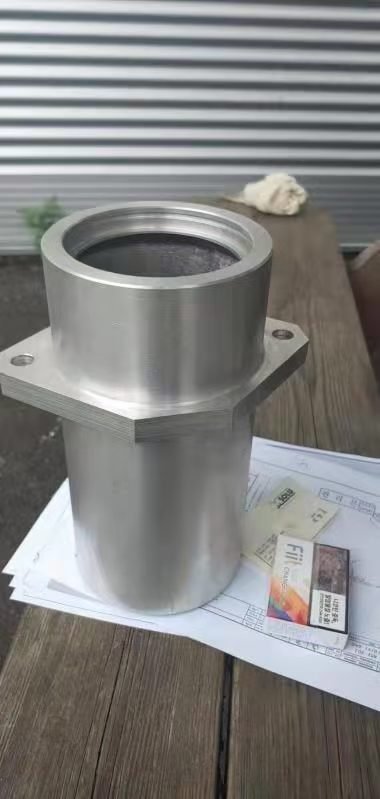

Latest Project

Recent Work in Shell Mold Casting

Precision Engineering &
Superior Quality

We specialize in high-accuracy shell casting, ensuring each component meets stringent quality standards.

Cutting-Edge Technology
& Expertise

We leverage state-of-the-art equipment and years of expertise to deliver precise, complex, and lightweight castings.

Reliable & Cost-Effective
Solutions

With a commitment to excellence, we provide cost-effective shell casting solutions without compromising on quality.

Applications of Shell Mold Casting

Shell casting is widely used across various industries due to its precision and versatility. Notable examples of shell mold castings include gearbox housings, cylinder heads, hydraulic and pneumatic valve bodies, truck hoods, camshafts, engine blocks, automotive transmission components, manifolds, connecting rods, lever arms, and drum shells. Additionally, the agricultural, automotive, petrochemical, and construction industries rely on shell mold casting for manufacturing essential machinery and components.

FAQs

1. What is Shell Casting?

Shell casting, also known as investment casting, is a precise manufacturing process where a mold is created from a wax pattern that is coated with a heat-resistant shell. The wax is then melted away, leaving a hollow mold for pouring metal to create high-precision parts.

2. How does the Shell Casting process work?

The process begins by creating a detailed pattern from wax, which is coated in a ceramic shell. After the shell hardens, the wax is melted out, and molten metal is poured into the cavity. Once cooled, the shell is broken away, revealing the final metal part.

3. What materials can be used for Shell Casting?

Shell casting can be done with a variety of materials, including stainless steel, bronze, aluminum, and other alloys. The choice of material depends on the application and the desired properties of the final product.

4. What are the advantages of Shell Casting?

Shell casting offers several benefits, such as high precision, the ability to create complex shapes, excellent surface finishes, and minimal waste. It is ideal for producing intricate parts with tight tolerances.

5. Is Shell Casting suitable for large-scale production?

Yes, shell casting is suitable for both small and large-scale production runs. Although it is commonly used for low to medium volume manufacturing, the process can be adapted for high-volume production with the right equipment and setup.
